Anhui Keye Information & Technology Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | KEYE |
| Certification: | NO |
| Model Number: | KVIS-B |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free wood |
| Delivery Time: | 4 to 6 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set per 4 weeks |
| Name: | Visual Inspection System For Soda Packaging | Model.No: | KVIS-B |
|---|---|---|---|
| Place Of Origin: | China | Applicable: | Bottle Package |
| Sample Height: | 20mm~120mm | Air Pressure: | 0.5~0.8MPa |
| Current: | 3kw-5kw | Voltage: | Adapt To National Standards |
| MOQ: | 1 Set | Payment: | T/T,L/C,Paypal,Credit Card Etc. |
| High Light: | Soda Bottle Inspection System,Defect Detection Bottle Inspection System,Soda Packaging defect detection system |
||
Soda is a very suitable summer drink. In tropical areas or warm coastal cities, the market demand for soda is very large. Due to the relatively simple production process of various sodas, the variety and quantity are endless. The market is for soda packaging. There is only a lot more demand. In response to a large amount of demand, many packaging factories now use fully automated machinery for production, but before the finished product comes out, quality detection is a must before the bottle is qualified. But most manufacturers can only rely on traditional methods for detecting, but the effect is unsatisfactory. Today, with the development of science and technology in various countries in the world, some far-sighted manufacturers have begun to use artificial intelligence machines to detect their own production products, and through artificial intelligence big data statistics, real-time summary of production process and process problems, greatly improving their production efficiency .
Detection principle
The system transports the bottles to the predetermined station in a stable and orderly manner, and then transmits the captured sample image to the image processing software through the high-pixel industrial camera, compares with the standardized sample and distinguishes the defective product and the good product, and controls the corresponding pneumatic components to reject defective products and collect qualified products.
The software sets the comparison standard for the samples, operators can control the comparison precision and choose the precision standard that best suits themselves, thereby controlling the defect rate and greatly reduce costs.
Detection details

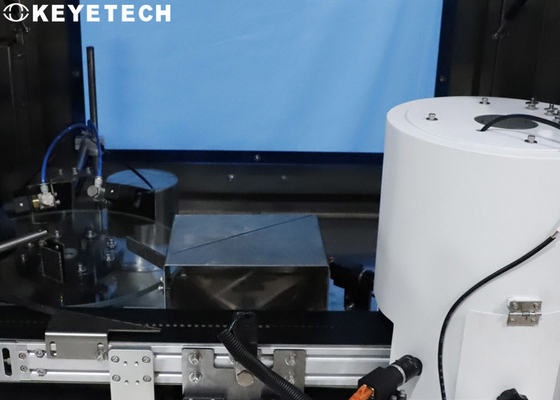

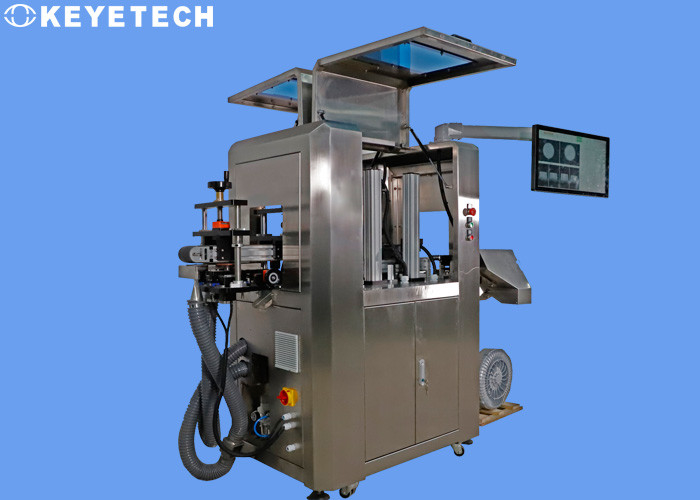

Our design plan uses 11 sets of high-pixel industrial cameras and high-performance stroboscopic light sources to carry out comprehensive detection for bottle mouth, bottle bottom and bottle body defects. The whole set of detection equipment includes mechanical parts, visual electronic hardware and detection systems. The software, the entrance and exit of the detection machine can be integrated with the conveyor line, the detection speed is 9600 pieces/hour, the equipment can realize 7*24 hours of operation, and the unqualified products can be automatically rejected.
The detection standards are as follows:
| Model | Camera number | Detection range | Detection content | Detection accuracy | Detection precision | Detection speed |
| KVIS-C -SC11 | 1set | Bottle mouth | Black spots, stains, overlap, burrs, lack of material, etc. | ≥0.5mm | Qualified product 99.5% | 160 pcs/min |
| False detection is less than 0.5% | ||||||
| 1set | Bottom of the bottle | Black spots, stains,foreign material, etc. | ≥0.5mm | Qualified product 99.5% | ||
| False detection is less than 0.5% | ||||||
| 4 set | Upper area of the bottle | Black spots, stains,missing, etc. | ≥0.5mm | Qualified product 99.5% | ||
| False detection is less than 0.5% | ||||||
| 4set | Lower area of the bottle | Black spots, stains, etc. | ≥0.5mm | Qualified product 99.5% | ||
| False detection is less than 0.5% | ||||||
| 1set | Outer bottom of the bottle | Black spots, stains | ≥0.5mm | 合Qualified product 99.5% | ||
| Hole | ≥1mm | Qualified product 99.5% |
The counting function can be performed after detecting the finished product, and the counting accuracy is 100%.
Detection equipment requires regular maintenance cleaning (camera cleaning, etc.) during use, the equipment itself does not produce sources of secondary contamination (such as debris, fine foam, etc.).
Detection software function:
-Open and close the system detection function
-Adjustment of detection index parameters and accuracy.
-Template sampling and storage, sample detection information save and recall.
-Camera image calibration function
-The system displays real-time production information (qualification rate, total production, speed, etc.), historical production information browsing, export and save functions.
-Permission management based on the login account (such as general operation users disable parameter adjustment permissions)
-Operation and adjustment of the mechanical part of the system
(Such as open the transmission device, the adjustment of the air valve blow time, and the adjustment of the alarm signal)
Examples of sample detection patterns
The patterns shown below are all real-time shots in the existing Keye detection system. The details are as follows:
Black spots or impurities in all positions of the bottle.
Product configuration details
| Name | Quantity | Unit |
| Gear | Several | pcs |
| Bearing | Several | pcs |
| Motor | 4 | pcs |
| Belt | 4 | pcs |
| Transmission Parts | 1 | set |
| Sheet metal parts | 1 | set |
| Rocker | 1 | set |
| Plexiglass | 1 | set |
