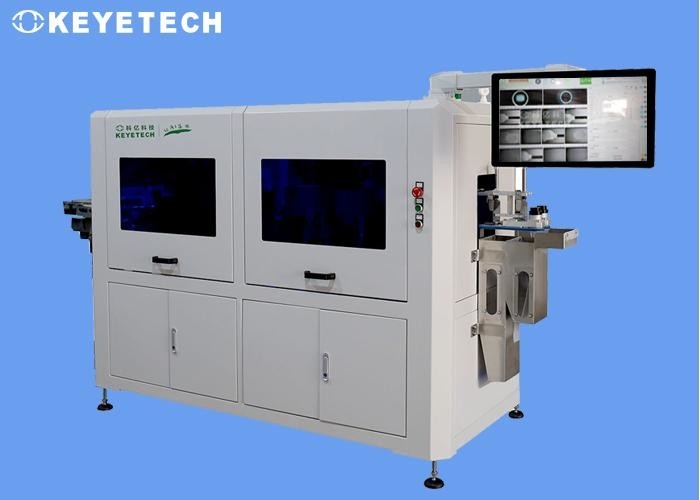

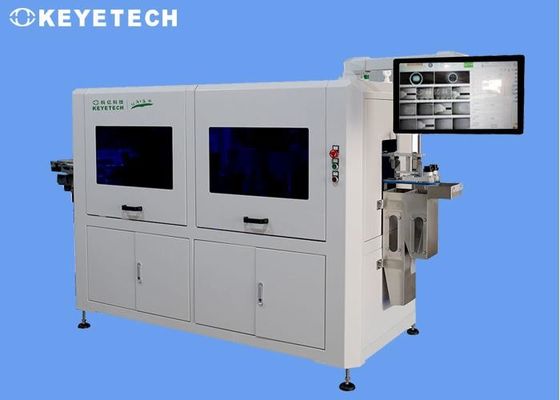

6 Camera PET PP Preform Quality Inspection Machine with Cloud Platform Support
Equipment Features:
| 1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training |
| 2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history |
| 3.Multi-orientation: 360 ° comprehensive inside and outside the samples |
| 4.High precision: detection accuracy can be high |
| 5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs |
| 6.Easy to operate: It is easy to operate and easy to maintain |
| 7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment |
Company Profile
Anhui Keye Intelligent Technology Co., Ltd. is a Chinese national high-tech enterprise specializing in the application of AI technology in visual inspection industry. As a leading manufacturer&Designer, It can provide the most advanced level AI visual inspection equipment and the customized AI system solutions of visual imaging, computing power, algorithm, and automatic control software for various sub-industries.
The company was established in 2011, it has a high-level R&D team from top domestic optical research institutes and a core doctoral team from the USTC, covering the entire technology chain of optics, electrics, mechanics, algorithm and software. Our products can be applied in beverage, pharmacy, dairy, wine, textile, new energy, agriculture and other packaging industries.
Inspection Overview
The design scheme uses high-pixel industrial cameras and high-performance strobe light sources to conduct all-round visual inspection for the appearance defects of products. The inspection speed is 200-400 pcs/min, and the equipment can operate 24 hours a day. Products can be automatically rejected online.

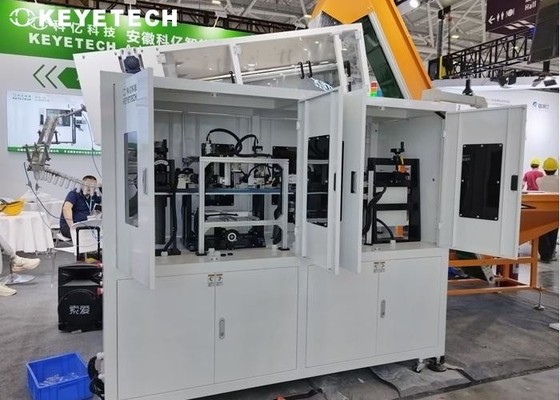

The whole set of vision machines includes mechanical parts, visual electronic hardware and vision system software. The entrance and exit of the inspection machine can be integrated with the customer's on-site conveyor line, and can be connected with upstream and downstream production equipment according to the specific production needs of the customer's site.
Software Function
- Enabling and disabling the system detection function
- Detection index parameters and accuracy adjustment
- Template sampling and saving, storage and retrieval of sample information
- Camera screen calibration function
- Real time production information display of the system (qualification rate, total output, speed, etc.), browsing of historical production information, export and storage functions
- Manage permissions based on login account (example, disabling parameter adjustment for general operation users)
- Operation and adjustment of the mechanical part of the system (If the transmission device is turned on, adjust the alarm signal)
Hardware:
1) Camera: We use our own developed camera (the chip is from Japan), which has clearer image recognition and is more compatible with our own software.
2) Light source: We have a dedicated optical team to develop various light sources to adapt to the optical scene requirements of different industrial scenes.
3) Embedded computer: The KEYE team independently developed the embedded computer NPU computing box, which replaced the traditional PLC industrial computer; it is not afraid of sudden power outages and high temperature scenes, and can better adapt to the high temperature environment in India in summer.
Software:
1) Algorithm: We use the latest AI deep learning algorithm. Most products only need a small amount of sample learning to complete a new product model; the machine can continuously learn some defects and good samples like the human brain, making the detection effect better and better.
2) Software: The latest KEYE V16.0 software can realize a variety of data statistics and human-computer interaction functions, and the touch screen operation is simpler.
3) KEYE cloud platform: The AI cloud platform can create its own cloud platform account for each customer, and the pictures of each training operation will be saved in its own account; even if the algorithm is lost due to software algorithms or other problems, all previous data can be retrieved through an independent cloud platform account. (KEYE team has technicians who regularly maintain this platform).
4) After-sales service: Provide long-term remote service, customers only need to keep the device in good network connection.
