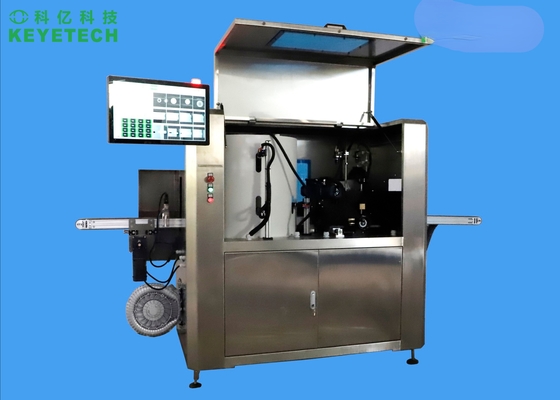

Quality Control Pharmaceutical Visual Inspection System Machine For Bottle Caps

The development trend of pharmaceutical packaging

With the implementation of the WHO, new requirements have been put forward for the hardware equipment of pharmaceutical companies, which has resulted in the growth of a number of pharmaceutical equipment companies and an opportunity for the upgrading of the pharmaceutical packaging material industry. With the continuous improvement of the living standards and health concepts of residents in various countries, coupled with the continuous increase of government investment in medical and health undertakings, the future pharmaceutical packaging market will usher in rapid growth. Therefore, with the more profit of pharmaceutical packaging, our company is willing to provide major enterprises with their own strength assistance based on technical equipment and service experience.

Inspection principle

Pour the bottle cap with a diameter of 5`6mm into the cap arrange equipment through the conveying line transport it stably and orderly through the photographing area of the industrial camera, and transfer the captured high-pixel sample image to the image processing software for comparison and analysis with the standardized model. After comparative analysis, it is determined whether the concave surface of the bottle cap, the trademark surface, and the side are defective, and the defective products are eliminated by compressed air, and the qualified products are finally collected. After the finished product is tested, the counting function can be realized, the counting accuracy rate is 100%, and the equipment can realize 7*24 hours all-weather operation.

Inspection details

The system is equipped with 6 sets of 230W pixel black-and-white industrial cameras, a cap sorting machine, and a full range of defect detection on the concave surface, trademark surface and side of the bottle cap. The normal detection speed is 1000 pieces per minute; the machine first completes the concave surface and The defect detection function in the side range, and then the vacuum adsorption method is used to adsorb and transport the product for defect detection on the trademark surface, which greatly improves the efficiency.

The standards are as follows:

Function of the inspection software

1. Enabling and disabling the system detection function
2. Adjustment of detection index parameters and accuracy.
3. Template sampling and storage, sample detection information storage and recall.
4. Camera screen calibration function.
5. The system displays real-time production information (qualification rate, total output, speed, etc.), browsing, exporting and storing historical production information.
6. Permission management based on the login account .(such as general operation users disable parameter adjustment permissions)
7. Operation and adjustment of the mechanical part of the system.(Such as the transmission device is opened, the air valve injection time is adjusted, and the alarm signal is adjusted)

Reference pic of the sample

The pharmaceutical industry has fully realized the importance of good packaging design to increase brand life and attractiveness. The industry believes that pharmaceutical companies must innovate and improve efficiency to cope with the growing threat of counterfeit drugs. Therefore, pharmaceutical companies will have an increasing demand for the pharmaceutical packaging market.
