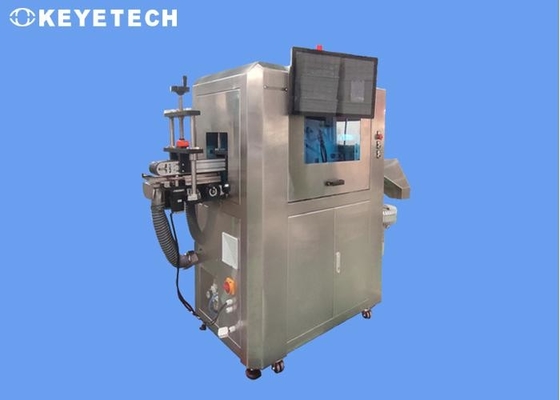

Product Inspection Equipment Machine Vision Surface Inspection for Eyebrow Pencil

Product Inspection Equipment Machine Vision Surface Inspection for Eyebrow Pencil

  • Product Inspection Equipment Machine Vision Surface Inspection for Eyebrow Pencil
  • Product Inspection Equipment Machine Vision Surface Inspection for Eyebrow Pencil
Product Inspection Equipment Machine Vision Surface Inspection for Eyebrow Pencil
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Name: Vision Surface Inspection For Eyebrow Pencil Colour: According To Customer's Need
Warranty: 1 Year Brand: KEYE
Feature: Free Of Labor Touch Screen: Humanized HMI
Light Source: LED Key Technology: AI Inspection
Accuracy: 99.8%
High Light:

odm Product Inspection Equipment

,

Eyebrow Packaging Product Inspection Equipment

,

Odm machine vision surface inspection

Inspection standard:

model Number of cameras Inspection scope Inspection content Inspection precision Accuracy Speed
KVIS-C01

1set

Printed character inspection printing missing >0.4mm 99.5% 60pcs/min
Ink contamination >0.4mm 99.5%
Printing ghosting >0.3mm 99.5%
Printing color mixing >0.4mm 99.5%



The inspection system uses a set of 4K high-pixel industrial line scan cameras to comprehensively inspect the outer printed surface of the eyebrow pencil. After the system collects product images, through AI deep learning, the inspection system automatically determines good and defective products, and the defective products are automatically rejected online, after the finished product is inspected. The counting function can be realized, and the counting accuracy rate is 100%. Operators can independently adjust the accuracy of the comparison and choose the most suitable accuracy standard for their own production conditions to control the defect rate.



Function diagram and principle





1.Camera position image

Product Inspection Equipment Machine Vision Surface Inspection for Eyebrow Pencil 0





Basic principles of eyebrow pencil inspection:

After the eyebrow pencil moves to the designated station, the eyebrow pencil tube is held by the clamping mechanism, and the eyebrow pencil is controlled by a servo motor to rotate for a full circle. There is a light source on the side, and the line scan camera captures images at the same time to obtain the high resolution of the side print. Scan the map. The inspection software compares this picture with the standard sample picture and detects the corresponding defects.

Product Inspection Equipment Machine Vision Surface Inspection for Eyebrow Pencil 1



 The counting function can be realized after the finished product inspection, and the counting accuracy is 100%.



 The inspection equipment needs to be maintained and cleaned regularly (such as conveyor belt cleaning, camera cleaning, etc.). The inspection equipment itself will not cause secondary pollution (such as debris, fine foam, etc.) to the inspection samples.



workflow:

(1) Feeding, positioning gripping

(2) Rotate a circle for shooting with a line scan camera.

(3) Algorithm expansion, AI deep learning algorithm comparison.

(4) AI algorithm marking, training, inspection + defects classification.

(5) Defective products classification and rejection



After-sale service

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.



After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.
