Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: Classification And Application Fields Of Visual Inspection System WEIGHT: 500kg
Brand: KEYE Material: SS 304
Key Tech: AI Algorithm Show Room: None
Voltage: Adapt To Natioal Standards After-sale: Remote Service
OEM: Yes Loading Port: Shanghai
High Light:

Visual Inspection System SS 304 Material

,

Visual Inspection System Dataization

Classification And Application Fields Of Visual Inspection System



Equipment features:

1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
3.Multi-orientation: 360 ° comprehensive inside and outside the samples
4.High precision: detection accuracy can be high
5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs
6.Easy to operate: It is easy to operate and easy to maintain
7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment



Basic Structure

1. Vision system (executes image acquisition function)
The CCD camera can realize the conversion of optical signal to electronic signal. The image of the subject is focused on the CCD chip through the optical lens. The CCD accumulates the corresponding proportion of charge according to the intensity of the light, and then transfers it under the action of the driving pulse, and enlarges the output as an image. Signal. The charge is converted into an electronic signal, and the light intensity received by each graphic element is obtained. The light intensity is reflected as the shade in the image binarization analysis, and the image is collected for analysis.



2. Mechanical system
Execute to transmit the detected object to the specified detection point)
The equipment can freely customize the loading and unloading methods, and customize different cameras, light sources, etc. around the detection requirements.

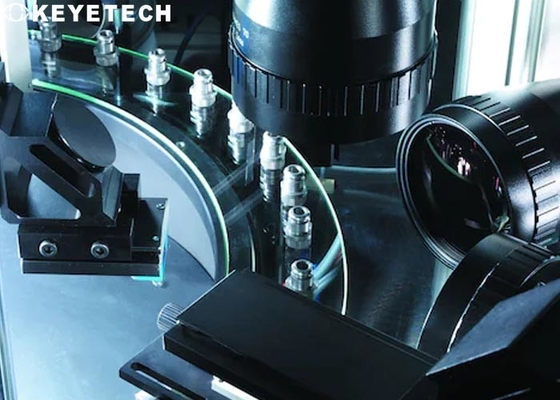

Classification And Application Fields Of Visual Inspection System Dataization 0

3. Software system (analyze and process the collected images)
The automatic detection software can be flexibly matched with the machine vision system.
The tool library can meet various visual needs, from the positioning, detection, identification, and measurement of geometric objects. Combined with flexible and powerful application development, the software enables unprecedented speed to create solutions for a variety of machine vision applications.



Visual Classification

1. Partial verification

  • Partial consistency, tracking and confirmation of products
  • Detect whether the characters on the surface of the product are reprinted
  • Detect whether the product tooth marks are branded
  • Detect whether the product is skewed by angle

2. Existence detection

Check the existence of parts or features of the product, and judge the existence and number of products

Classification And Application Fields Of Visual Inspection System Dataization 1



3. Feature positioning

The 2D/3D camera can automatically identify and locate the working space distance, so as to realize the vision-guided positioning of the robot



4. Feature measurement

Product size measurement, including distance, diameter, total, angle, area, etc.,

It is used to detect whether the process size of the product meets the design requirements to ensure the production quality of the product

Classification And Application Fields Of Visual Inspection System Dataization 2

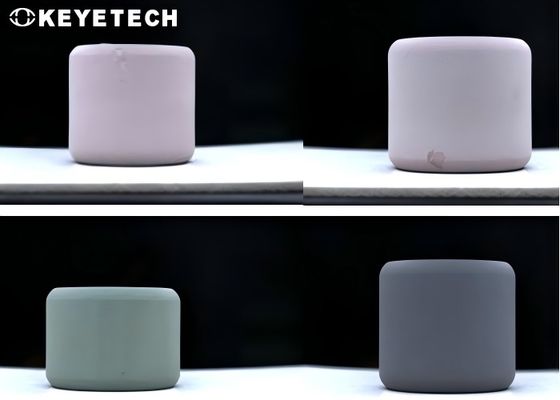

5. Surface defect detection

Scan the surface of the product through visual inspection for defects, find problems in time, and ensure product quality

Classification And Application Fields Of Visual Inspection System Dataization 3
