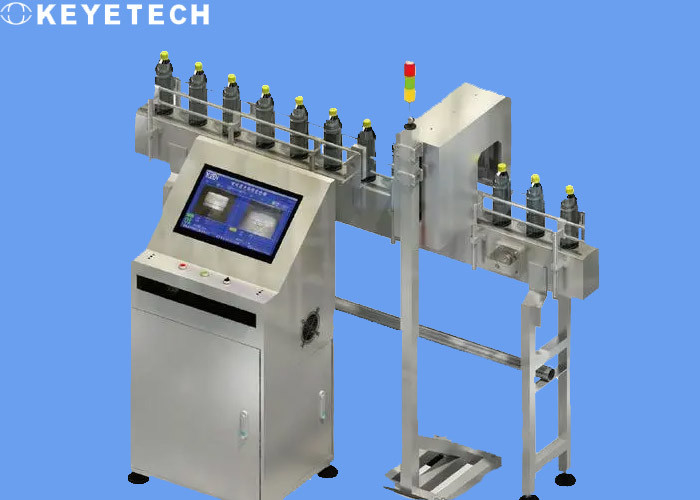

Liquid Volume Visual Inspection Equipment With Vision Sensors

Liquid Volume Visual Inspection Equipment With Vision Sensors

  • Liquid Volume Visual Inspection Equipment With Vision Sensors
  • Liquid Volume Visual Inspection Equipment With Vision Sensors
Liquid Volume Visual Inspection Equipment With Vision Sensors
Product Details:
Place of Origin: CN
Brand Name: KEYE
Certification: No
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: Liquid Volume Visual Inspection Equipment With Vision Sensors Origin: CN
Warranty: 1 Year Algorithm: Deep Learning
After-sale: Remote Service Core Technology: AI Algorithm
Software Support: Yes OEM: Yes
Packing: Plywood Carton Loading Port: Shanghai
High Light:

Liquid Volume Visual Inspection System

,

Liquid Volume Visual Inspection Equipment

Liquid Volume Visual Inspection Equipment With Vision Sensors



Technical parameters

1. Product inspection status: online dynamic inspection
2. Product detection speed: 300 pieces/min
3. Detection items: detection of liquid level, cover height and skew
4. Response time: ≤200 second
5. Recognition accuracy: 0.1mm
6. Quality control: customized according to customer requirements
7. Detection form: realize high-speed, stable and precise operation.
8. System performance: able to adapt to lack of light, or illumination and changes in focal length
9. Detection form: It can realize the detection of different precision requirements of partitions



Inspection principle

When liquid canned products are involved in industrial production lines, it is often necessary to measure the liquid level after canning, such as medical, food, beauty and other industries, especially for infusions, test tubes, etc., which require high accuracy and can only be used For non-contact and high-throughput scenarios, liquid level detection is essential.

Liquid Volume Visual Inspection Equipment With Vision Sensors 0
At present, the automatic liquid level measurement methods mainly include: acoustic wave method, photoelectric sensor method, capacitive sensor method and machine vision based detection. The detection method adopts the backlight method to distinguish whether there is liquid or not, and calculates the distance between the highest liquid level and the bottom of the bottle, that is, the liquid level. Sexual characteristics have attracted much attention.




System functions&details

Real-time collection of product images through industrial cameras, and non-contact detection of liquid levels. Obtain the data of the bottom of the bottle and the liquid level through the linear measuring device, and calculate the distance. Then, the outline of the liquid area is retrieved through image data preprocessing, and the two are matched with each other and combined with thresholding, morphology and other operations to obtain the height of the liquid level, realizing real-time detection of the liquid level without the aid of external measuring instruments.

Liquid Volume Visual Inspection Equipment With Vision Sensors 1

Name Unit Quantity
Smart camera pcs 1
camera lens pcs 1
Stroboscopic flash source pcs 1
Laser beamer Pair 2
High-speed ejector pcs 1
Industrial Power pcs 4
Circuit trigger board pcs 2
HD touch screen pcs 1
Pneumatic Components pcs 1
Warning light pcs 1
Terminal/Relay pcs 1
Strong and weak wires pcs OEM



System Advantage

1. AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training.

2. Dataization: Independent database, save multiple samples, analyze non-good products, and retain history.

3. Multi-orientation: 360 ° comprehensive inside and outside the bottle without dead corners for medical packaging bottle caps, bottle mouths, bottle bottoms.

4. High precision: detection accuracy can reach 99.5%.

5. Modularization, can flexibly increase or decrease the detection function according to customer actual needs.

6. Easy to operate: It is easy to operate and easy to maintain.

7. Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment.



Machining Proce
