Aluminum Wine Lids Visual Inspection Machine With Automatic Cap Feeders

Aluminum Wine Lids Visual Inspection Machine With Automatic Cap Feeders

  • Aluminum Wine Lids Visual Inspection Machine With Automatic Cap Feeders
  • Aluminum Wine Lids Visual Inspection Machine With Automatic Cap Feeders
Aluminum Wine Lids Visual Inspection Machine With Automatic Cap Feeders
Product Details:
Place of Origin: CN
Brand Name: KEYE
Certification: No
Model Number: Kvis
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1set per 6 weeks
Contact Now
Detailed Product Description
Application: Aluminum Wine Lids Visual Inspection Machine Model.No: Kvis
Weight: 500 Kg Advantage: Easy To Operate
Voltage: Adapt To National Standards Warranty: 1 Year
Power: 5Kw Speed: 800-1200/min
Payment: T/T,L/C,Paypal,Credit Card Loading Port: Shanghai
High Light:

Wine Lids Visual Inspection Machine

,

Wine Lids Visual Inspection System

,

Aluminum Lids Visual Inspection System

Aluminum Wine Lids Visual Inspection Machine With Automatic Cap Feeders



Inspection standard

Item Camera Area of detection Inspect Precision Accuracy Speed
KVIS 1 set Medial side

Black spot,size,deformation,printing,

oil stain,burr,flash,gasket,foreign item

>=0.5mm 99.5% 400pcs/min
1 set Inner bottom >=0.3mm
1 set Cap body >=0.5mm
1 set Flat side >=0.5mm
4 sets Outer side >=0.3mm



Inspection principle

The aluminum cover is a part of the packaging for wine products, and it is also a part that reflects the brand characteristics and value. Concentrated. Many wine packaging brands will choose this type of wine cover, so when people are testing the packaging, the wine cover is the first test item.

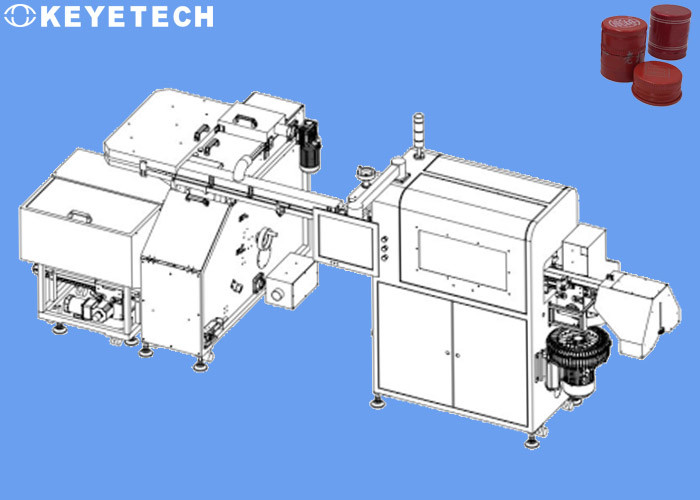

Aluminum Wine Lids Visual Inspection Machine With Automatic Cap Feeders 0

Due to the small volume of the wine cap and the mechanization of production, in the process of mass production, due to the influence of the production environment and production process, the wine cap may have various problems such as black spots, burrs, stains, uneven thickness, and shape variation. , the manual inspection by workers is relatively slow, and the accuracy cannot be guaranteed. Therefore, in order to improve production efficiency, improve product quality, and increase their own output value, many wine packaging manufacturers choose visual inspection machines.



Inspection details

The design scheme adopts 8 sets of high-pixel industrial cameras and high-performance strobe light sources to carry out comprehensive defect detection for the appearance of red wine bottle caps. The whole machine can be independently arranged at the customer site, and the detection speed is 400 pieces/min.

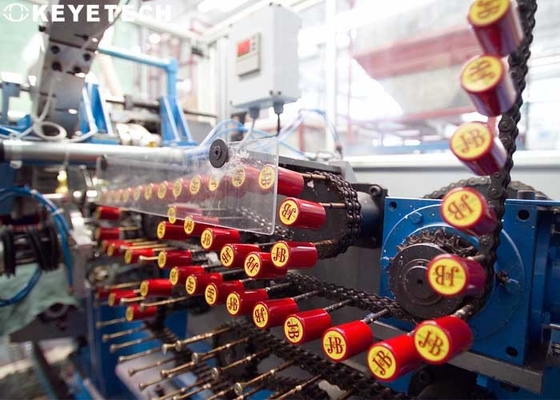

Aluminum Wine Lids Visual Inspection Machine With Automatic Cap Feeders 1

The equipment can operate 7*24 hours a day, and the unqualified products can be automatically rejected online. The software will open the sample comparison standard, and the production personnel at the customer site can control the comparison accuracy and select the most suitable accuracy standard for their own production conditions, thereby controlling the defect rate.





Features of system

  • Online detection, instead of manual operation
  • The system can detect dimensions, defects, stains, center misalignment
  • Suitable for products of different sizes and colors
  • OK/NG product system outputs corresponding control signals
  • The system can flexibly increase the detection function
  • The detection data is saved in real time for historical query and analysis
  • Fast detection speed, can be realized offline and online

Company profile

KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.

Aluminum Wine Lids Visual Inspection Machine With Automatic Cap Feeders 2
