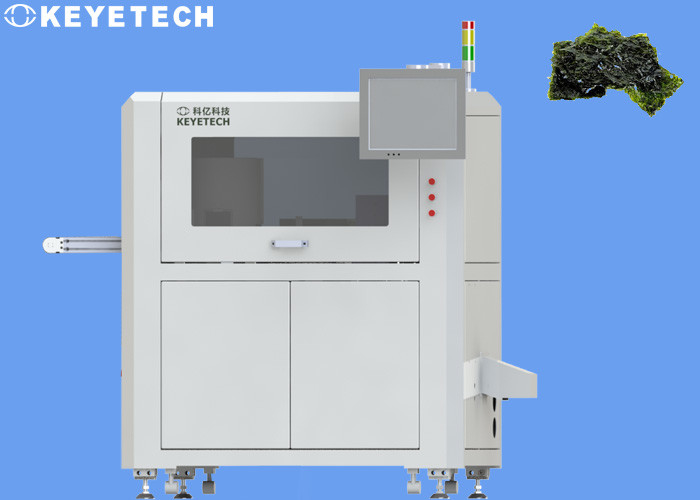

Seaweed Crisps Integrity Visual Inspection System With An Alarm Design

Seaweed Crisps Integrity Visual Inspection System With An Alarm Design

  • Seaweed Crisps Integrity Visual Inspection System With An Alarm Design
  • Seaweed Crisps Integrity Visual Inspection System With An Alarm Design
Seaweed Crisps Integrity Visual Inspection System With An Alarm Design
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Name: Seaweed Crisps Integrity Visual Inspection System Brand: KEYE
Condition: New After Sale: Remote Service
Warranty: 1 Year Test Report: Provided
Voltage: Adapt To National Standard Weight: 300-500kg
OEM: Yes Loading Port: Shanghai
High Light:

Modularization Visual Inspection System

,

OEM Remote Visual Inspection System

,

Seaweed Crisps Visual Inspection System

Seaweed Crisps Integrity Visual Inspection System With An Alarm Design

Our advantages

1. AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
2. Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
3. Multi-orientation: 360 ° comprehensive inside and outside the samples
4. High precision: detection accuracy can be high
5. Modularization, can flexibly increase or decrease the detection function according to customer actual needs
6. Easy to operate: It is easy to operate and easy to maintain
7. Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment



Inspection background

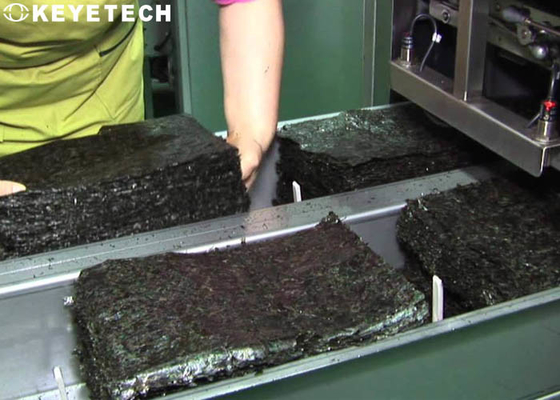

The seaweed defect detection system developed by KEYE TECH based on machine vision image processing technology has the characteristics of high precision, high speed and multi-sample. This program is divided into two production lines for testing. Each production line has one area array inspection and two line array inspections. The area scan camera detects the holes and ruler pairs of the product; the line scan camera detects the foreign objects on the front and back of the product respectively. The vision module is installed on the detection position. When the seaweed reaches the detection position, the vision module performs image detection and transmits the signal to the control module, and outputs the judgment signal through the communication module.

Seaweed Crisps Integrity Visual Inspection System With An Alarm Design 0

The stamping parts detection system mainly detects abnormal conditions such as geometric dimensions, lack of terminals, missing punches, and fractures of stamping parts, and can prompt an alarm or control the machine to stop. After testing the stamping parts that do not meet the requirements, a control signal can be output to reject the unqualified products.



Mian functions of machine

  • Check whether the geometric dimensions of stamping parts are qualified or not;
  • Detect whether the stamping parts are leaking, breaking, etc.;
  • Detect punching residues of stamping parts, etc.;
  • Online automatic detection can be realized;
  • The detection accuracy is adjustable;
  • Detection speed: The time from a single image capture to the detection result display is controlled within 300ms, and the entire detection speed is related to the detection position and range of the stamping parts;
  • Convert the detected characters into characters and store them in the EXCLE file, which is convenient for data processing and printing; when quality problems are detected by statistics, it provides warnings, rejections or other control signals;
  • The system has a self-learning function, and the learning process is easy to operate.

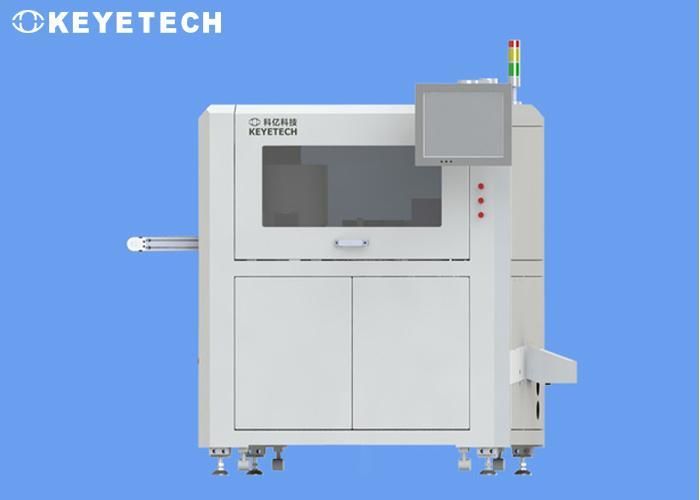

Seaweed Crisps Integrity Visual Inspection System With An Alarm Design 1



Inspection standards

  1. Image acquisition range: ≥50* 60mm
  2. Imaging and display: 1024*768 pixels
  3. Lens type: C-mount type
  4. Imaging speed: 60fps
  5. Gray scale: white 256 gray scale (8 bits per pixel)
  6. Minimum illumination: black and white 0.02Lux.
  7. Detection time: less than 400ms
  8. Power consumption: less than 300W
  9. Working power: 220VAC+20%, 50Hz
  10. Working ambient temperature: 0~ 50°C
  11. Humidity: 35% ~ 85% non-condensing

After-sale service



The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.

Seaweed Crisps Integrity Visual Inspection System With An Alarm Design 2

After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.
