KEYE TECH AI Visual Inspection System for Water Beverages Plastic PET Preform

KEYE TECH AI Visual Inspection System for Water Beverages Plastic PET Preform

  • KEYE TECH AI Visual Inspection System for Water Beverages Plastic PET Preform
  • KEYE TECH AI Visual Inspection System for Water Beverages Plastic PET Preform
KEYE TECH AI Visual Inspection System for Water Beverages Plastic PET Preform
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Name: Visual Inspection System For PET Preforms Origin: CN
Weight: 400kg Size: 230x120x185cm
After Sale: Remote Service Material: SS 304
Test Report: Provide Voltage: Adapt To National Standards
Feature: Easy To Operate Loading Port: Shanghai
High Light:

visual inspection machine

,

automated vision inspection system

Inspection details

Model Cameras Detection range Detection content Detection accuracy Accuracy rate False detection rate Detection speed
KVIS 4set Around the bottle preform Black spots, bubbles, impurities (different colors) ≥0.3mm 99% ≤0.2%

70pcs/min

1set Preform base Black spot, hole ≥1.5mm 99% ≤0.2%
4set Opening of the preform Black spots, stains, impurities (different colors) ≥0.2mm 99% ≤0.2%
Overlap, lack of material ≥1mm 99% ≤0.2%
1set Support ring Lack of material ≥1mm 99% ≤0.2%



Market background

Plastic products are common products in industry and play an important role in people's production and life. In the process of producing plastic products, we use injection molding processing method.



However, due to the poor quality of raw materials, equipment instability and insufficient mechanical manual level, plastic products are prone to quality defects during the injection molding process. Co-injection molding defects include underfill, air bubbles, cracks, warpage and dimensional changes.

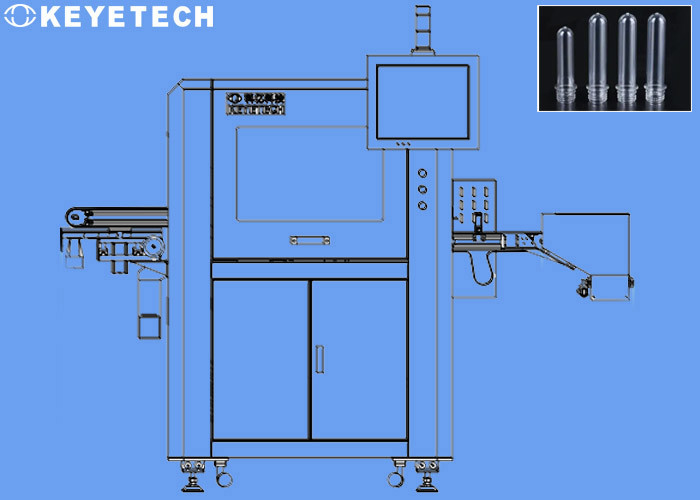

KEYE TECH AI Visual Inspection System for Water Beverages Plastic PET Preform 0



Features of system

In response to customer pain points and market demands, the "preform machine inspection machine" online inspection system for appearance defects adopts machine vision technology and replaces human eyes with machines, which can quickly and efficiently complete the automatic detection of each preform under non-contact conditions. Screening and rejecting can increase the yield to above 99.9.



The traditional artificial intelligence visual inspection method of medicine bottle packaging is time-consuming and labor-intensive, and it will affect the detection efficiency. As a method of machine vision, the medicine bottle packaging visual inspection system is used in many scenarios, and it has been successfully applied to images in the past. detection and classification. It also provides a feasible method for industrial defect detection work.

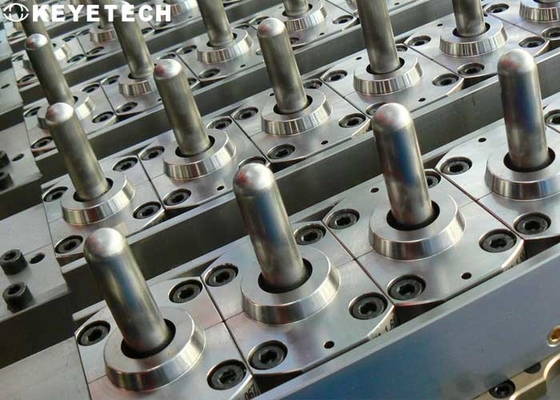

KEYE TECH AI Visual Inspection System for Water Beverages Plastic PET Preform 1



Image process

Image collection transformation operations (cropping, selection, mirroring, scaling, etc.) can often be used as image information data to continuously enhance, to achieve the purpose of helping student models to obtain better generalization capabilities of enterprises. Since the plastic medicine bottle image is approximately a fixed size circle, the number of image sample companies can be multiplied by considering that the system adopts random rotation of the image as a means of image enhancement.



First, the original image is preprocessed to extract feature parts, and then the number of image samples is increased by data augmentation, and then the image pyramid is obtained by downsampling. Through this whole process, we can get a larger sample set, which can bring the sample closer to a normal distribution.
