Home ProductsVisual Inspection System

Package Testing Glass Bottle Inspection System for Penicillin Bottle Caps

Package Testing Glass Bottle Inspection System for Penicillin Bottle Caps

  • Package Testing Glass Bottle Inspection System for Penicillin Bottle Caps
  • Package Testing Glass Bottle Inspection System for Penicillin Bottle Caps
Package Testing Glass Bottle Inspection System for Penicillin Bottle Caps
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Name: Inspection System For Penicillin Bottle Caps Color: OEM
Feature: Easy To Operate Material: SS 304
Function: Product Classification Test Report: Provide
Show Room: No Key Technology: AI Algorithm
MOQ: 1 Set Payment: T/T,L/C,Paypal,Credit Card,etc.
High Light:

visual inspection machine

,

automated vision inspection system

Features of system

1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
3.Multi-orientation: 360 ° comprehensive inside and outside the samples
4.High precision: detection accuracy can be high
5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs
6.Easy to operate: It is easy to operate and easy to maintain
7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment



System profile

It is mainly used for the tightness detection of freeze-dried preparations of vials, powder injection preparations, etc. The vial testing equipment has an integrated design and can be seamlessly connected with the company's existing production line. In terms of detection speed, the Lin bottle detection equipment can reach 600 bottles per minute, and the false detection rate can be controlled at 0.1%. The vial inspection system is independently developed by KEYE TECH, which is different from the secondary development of the original vision platform by most visual inspection companies in the market. It can provide customized services for different production environments, production processes and inspection needs of enterprises.


Inspection Principle

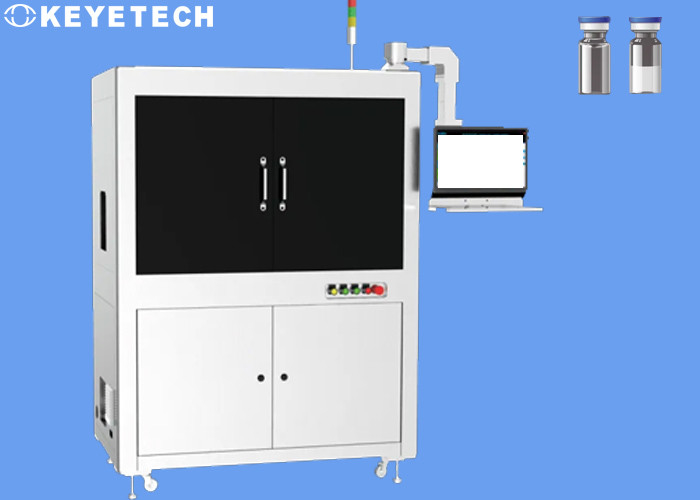

The equipment is divided into the following main parts: feeding bottle conveying mechanism, conveyor belt detection mechanism, camera light source tracking mechanism, bottle rejection separation mechanism, servo motor control mechanism, body and protective cover mechanism and other parts. While the drug is running on the production line, a high-speed camera takes pictures of the drug under inspection.

Package Testing Glass Bottle Inspection System for Penicillin Bottle Caps 0
There are six inspection stations for the inspection: a capping defect inspection station, a bottle bottom defect inspection station and a drug visible defect inspection station, and four bottle body and drug defect inspection stations. If there is any defect in the inspected item, it can be judged after being detected by the system's automatic learning function. When the tested drug is delivered to the rejecting mechanism, the bottle rejecting device separates the qualified and unqualified products.

Inspection Standard

Model

Number of camera

Inspection scope

Inspection content

Detection precision

Accuracy

Capacity










KVIS-MC

-SC10

1 set

Concave area

Black spot,stains (color different)

≥0.2mm

Qualified more than 96%

300 Pcs/mins

Wrong detecting rate less than 1%

1 set

Top area

Black spot,stains (color different)

≥0.2mm

Qualified more than 96%

Wrong detecting rate less than 1%

4 set

Side area

Black spot,stains (color different)

≥0.2mm

Qualified more than 96%

Wrong detecting rate less than 1%

Printing missing

≥1.0mm

Qualified more than 96.5%

Wrong detecting rate less than 1%

Injection incomplete

≥0.5mm

Qualified more than 98%

Wrong detecting rate less than 0.8%

Sealing not good

≥1.0mm Qualified more than 95%
Wrong detecting rate less than 1%



4 set


Ring area

Black spot, stains (color different)

≥0.2mm

Qualified more than 96%

Wrong detecting rate less than 1%

Incomplete

≥0.5mm

Qualified more than 98%

Wrong detecting rate less than 0.8%



Inspection details

1. Before filling (filling):

After sterilization, the vials are sterilized at high temperature and then enter the sub (filling) filling machine through the conveyor belt. Unqualified products such as bottles and obviously visible foreign bodies in the bottles shall be detected and rejected;


2. After dividing (filling):

After filling (canned), the unqualified products such as the filling level, the half-pressing height of the freeze-dried rubber plug, and the obvious foreign matter in the material liquid can be detected and rejected;

Package Testing Glass Bottle Inspection System for Penicillin Bottle Caps 1
3. Before capping:

Detect the quality of the pressure plug and the obvious foreign matter on the rubber plug;


4. After capping:

Detect unqualified semi-finished products such as the quality of rolled caps, mixed use of aluminum caps, obvious foreign objects on aluminum caps, and whether freeze-dried products are freeze-dried.



Our advantages

Package Testing Glass Bottle Inspection System for Penicillin Bottle Caps 2
