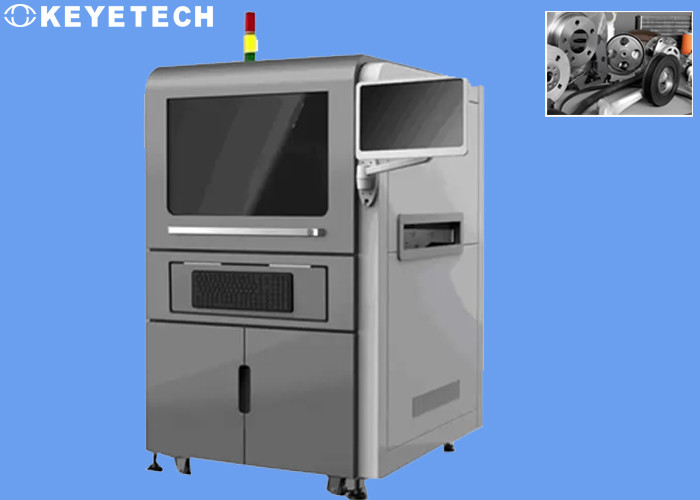

Fully Automated Car Component Checking Machine with Vision System

Fully Automated Car Component Checking Machine with Vision System

  • Fully Automated Car Component Checking Machine with Vision System
  • Fully Automated Car Component Checking Machine with Vision System
Fully Automated Car Component Checking Machine with Vision System
Product Details:
Place of Origin: CN
Brand Name: KEYE
Certification: No
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 8 weeks
Payment Terms: L/C, T/T
Supply Ability: 1set per 6 weeks
Contact Now
Detailed Product Description
Name: Car Component Checking Machine Warranty: 1 Year
Brand: KEYE Accuracy: 0.15mm
Voltage: Adapt To National Standards Use: Quality Inspection
Power: 2.5Kw Speed: 600/min
Advantage: Full-auto Quality: High Grade
High Light:

visual inspection machine

,

automated vision inspection system

System parameters

Name Car Component Checking Machine Model KVIS

Dimension(mm)

L*W*H

2590* 800*1850(Length does not include vibration plate system) Voltage AC220/50HZ
Power 3KW Pressure 0.4-0.7Mpa

Conveying method

Vibrating plate feeding, non-destructive conveying Inspection method Online real-time inspetection
Camera type

High-speed industrial camera

Number of cameras

14 sets of camera

Algorithm

Deep learning

Compatible product size

Φ8-10,12,13

Speed

150~400/min

Inspection scope

Poor appearance, poor size, mixed specifications, etc.

Rejection method

High-speed automatic rejection



Inspection principle

The automotive industry uses machine vision technology to automate inspection to reduce cost and waste, automotive parts vision inspection system data acquisition, including robotic guidance, part traceability, measurement of critical dimensions, tack weld nuts, the presence of springs and fasteners, sealants Weld bead tracking, inspection verification, and more, which are then analyzed and acted upon by machine learning algorithms and extract real-time and customized reports.

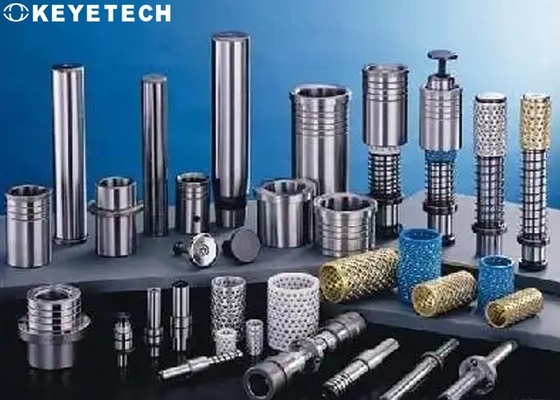

Fully Automated Car Component Checking Machine with Vision System 0

As today's industrial technology becomes more and more developed, visual inspection equipment is also widely used, and now such equipment can be seen in various industries, especially in automotive parts, visual inspection equipment can detect their defect size and appearance. Defects, etc.



Inspection details

The visual inspection equipment for electronic components developed and produced by KEYE TECH uses machine vision to replace the human eye, converts the captured target into an image signal through a CCD industrial camera, and transmits it to a dedicated image processing system. Digitized signals; the image system performs various operations on these signals to extract the characteristics of the target, and then controls the on-site equipment actions according to the results of the discrimination. The equipment realizes the automatic process of component size measurement and appearance defect detection, automatic feeding, automatic detection, automatic sorting, automatic unloading, and automatic rejection of defective products.

  • 1. Dimensional measurement of auto parts: At the same time, analyze and judge according to the product outline provided by the enterprise.
  • 2. Appearance defect detection: such as obvious scratches, scratches, and missing phenomena on the product. Based on the image, it can be judged whether the product is defective or not. However, this also depends on the pixel level of the industrial camera. Generally, the higher the pixel, the more obvious the defects will be.
  •
  • 3. Surface contamination detection: If the product surface is contaminated, it can be identified.
  • 4. Detect the integrity of technical products: no matter whether there are cracks or leakage in the product design of the enterprise.
  • 5. Sunroof glue detection: For the visual inspection solution after gluing the front and rear windshields of the car, detect the glue height (uniformity) and glue width data of the glue, and detect whether there is any defect such as broken glue.

Fully Automated Car Component Checking Machine with Vision System 1

  • 6. Wheel hub size inspection: The automotive hub size verification system uses 3D laser profiling technology to evaluate key measurements of refurbished rims to indicate overall rim stability while driving.
  •
  • Once the wheel is loaded into the system, two cameras create a 3D height map of the top and bottom of the lug area, and when the scan is complete, the custom software locates the serialized wheel 1D/2D barcode, two air bars, backplane plane degrees, lug hole surface defects, and other critical dimension measurements. All measurement data is stored in a database and associated with a serialized barcode number for each wheel. A robotic cell downstream of the production line sorts the wheels according to the tolerance of these measurements.
  •
  • 7. Tire flatness inspection: A combination of two different machine vision applications, used individually or in sequence, to ensure tire assembly quality is free from the more common non-compliance issues.
  • The auto parts visual inspection system is one of the equipments used earlier in the machine vision industry. Due to the very high inspection requirements for auto parts, general manual inspection cannot meet the current needs. Only through the use of automated visual inspection technology can the quality of the car be truly improved. At the same time, it also plays a role in escorting the quality of my country's auto parts.

Our advantages

Fully Automated Car Component Checking Machine with Vision System 2
