Place of Origin: | China |
Brand Name: | KEYE |
Certification: | NO |
Model Number: | KVIS-B |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free wood |
Delivery Time: | 4 to 6 weeks |
Payment Terms: | L/C, T/T |
Supply Ability: | 1 set per 4 weeks |
Name: | Visual Inspection System For PET Medicine Bottles | Brand: | KEYE |
---|---|---|---|
Condition: | New | After Sale Service: | On-line Service |
Warranty: | 1 Year | Test Report: | Provided |
Voltage: | Adapt To National Standard | Weight: | 400kg |
MOQ: | 1 Set | Loading Port: | Shanghai |
High Light: | PET Medicine Bottles Visual Inspection System,Medical Package Visual Inspection System |

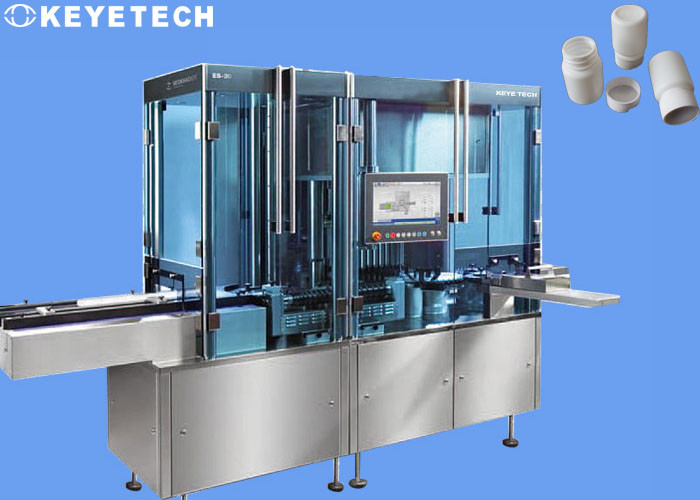

Medical Package Visual Inspection System For PET Medicine Bottles
Testing standards
Model | Camera | Scope Of Test | Test Content | Detection Accuracy | Accuracy | Detection Speed |
Kvis-Sc10
|
1set | Bottle Mouth Area |
Black Spots, Stains, Impurities (Different Colors) |
≥0.2mm | 99% | 120 Per Minute |
Flash, Lack Of Material | ≥1.0mm | 99% | ||||
4 Sets | The Upper Area Of The Bottle Body (Including The Outside Of The Bottle Mouth) |
Black Spots, Stains, Impurities (Different Colors) |
≥0.2mm | 99% | ||
Bubble | ≥1.0mm | 99% | ||||
4 Sets | Lower Area Of Bottle |
Black Spots, Stains, Impurities (Different Colors) |
≥0.2mm | 99% | ||
Bubble | ≥1.0mm | 99% | ||||
1 Set | Outer Bottom Of Bottle | Black Spots, Stains, | ≥0.2mm | 99% | ||
Impurities (Different Colors) | ≥1.5mm | 99% | ||||
Hole (Penetration, No Adhesion In The Hole) |
≥1.0mm | 99% |
Detection Principle

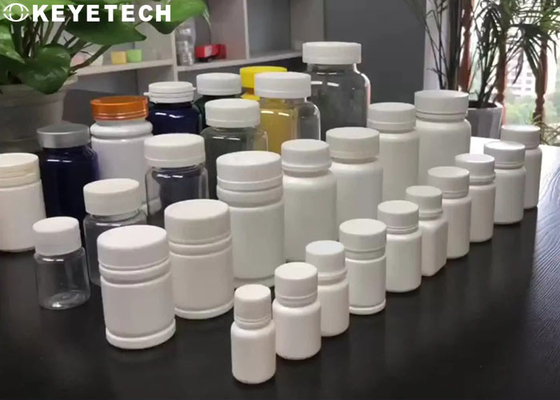

The pharmaceutical and health care industry has very high requirements on the manufacturing and appearance quality inspection of medicine bottles, and requires comprehensive inspection of the appearance, surface defects, dimensions, foreign bodies, lack of glue, excess glue, scratches, and different colors of medicine bottles. The traditional method is that an injection molding machine is equipped with 1-2 workers to perform manual visual inspection. The labor is not only expensive, but also inefficient. In addition, the quality of manual inspection was extremely unstable before, especially for night shifts or long-term tedious and monotonous work. It leads to the outflow of defective products, which leads to customer complaints, which directly leads to batches of complaints and returns from customers, and also poses a potential threat to the health of consumers.
The medicine bottle inspection machine uses automatic inspection vision technology to perform automatic inspection without manual intervention for defects such as black spots, dirt, flash and material shortage on the appearance of medicine bottles. Sorting, packing, etc., so as to realize the whole process operation.
The fully automatic medicine bottle inspection machine has high stability and low false positive rate. One piece of equipment can usually complete the inspection tasks of two injection molding machines, and it can truly achieve 24-hour non-stop operation, which is far better than manual inspection efficiency. A cost-effective choice to replace labor and improve production efficiency of appearance quality inspection.
System Operating Parameters:
This plan requires preliminary communication between the two parties, and comprehensively considers the complexity and feasibility of the system. The confirmation of bottle testing requirements and indicators is as follows:
System operating parameters | |||
System size | See design drawings for details | Voltage and current | 220V 20A 50HZ |
Equipment Power | 5.0-6.0kw | Compressed Air | 0.5~0.8Mpaclean And Oil-Free |
Ambient Temperature | -20℃ ~ 60℃ | Environment Humidity | Below 50% Relative Humidity |
Advantage of system
