Tablet Medicine Packaging Inspection Equipment Can Reduce The Labor Cost

Tablet Medicine Packaging Inspection Equipment Can Reduce The Labor Cost

Market background

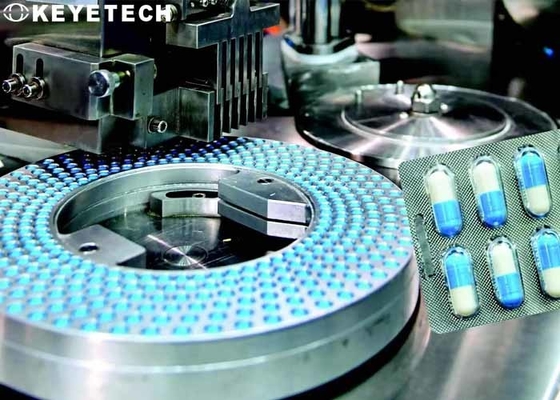

With the continuous introduction of foreign high-speed and high-precision medicine machines into the Chinese market, domestic machinery manufacturing companies have also upgraded their products. The tablet granule filling machine has high speed and high filling accuracy requirements, and belongs to the medical machinery and equipment with a relatively high degree of automation. From PVC film through hot compression molding to tablet filling, and then to aluminum-plastic sealing and slicing, it needs to be completed at one time and at high speed. This requires that there is no leakage of the drug board and no damage to the tablet.

Usually, after the tablet filling is completed, the tablet will be directly sealed with aluminum plastic. If machine vision is introduced to detect it after plastic sealing, once there is a plastic hole that is not filled or filled with a defective tablet, it will cause product waste and increase the difficulty of detection. . In addition, many plastic seals are opaque, and it is difficult to detect once the plastic seal is good, so the quality of the product is sometimes compromised.

Our advantages

Inspection details

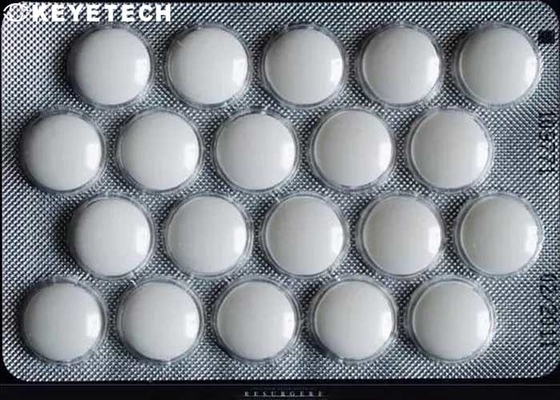

The system uses pattern matching and color recognition to determine whether a package has the correct number and type of tablets. Check the number of pills in the package and the color of each pill, and issue an alarm or reject unqualified packages. The design of the image acquisition device is as follows:

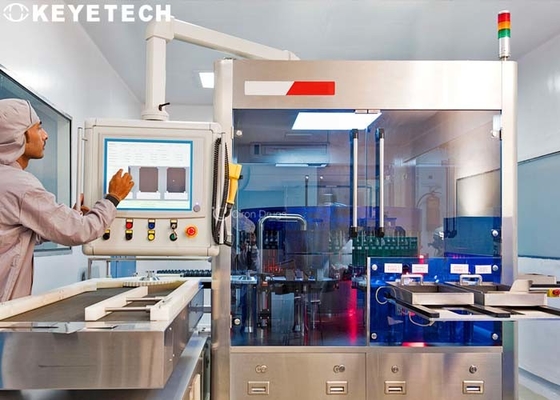

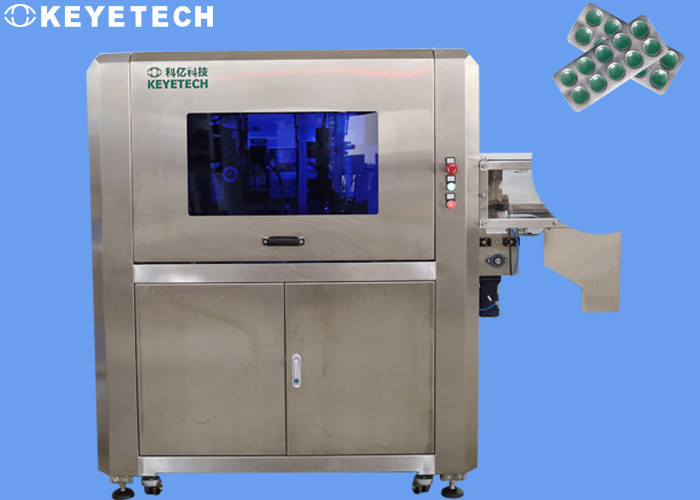

KEYE visual inspection system can meet the needs of different aspects, and it also meets different customer requirements for tablet quality inspection. It is made of PVC compression molding and consists of 4 pieces of medicine board. When testing, 4 boards should be tested at the same time, and the 4 boards should be divided into two left boards and two right boards. After triggering the phase acquisition, the detection result will be displayed on the touch screen. The system will save the detection results of 31 drug boards, and then send them to the PLC together, and then control the cylinder to be responsible for rejecting the bad boards.

Key technology

Our company chooses the latest KVIS visual inspection system, the platform includes 5 major modules, intelligent learning, geometric measurement, connector detection, positioning detection, detection algorithm. The detection algorithm module includes 15 basic tools: edge detection class, speckle measurement, size measurement, shape matching, pitch measurement, color measurement, area measurement, brightness measurement, etc.

The products have obvious advantages in the fields of stain detection, geometric measurement, color recognition, intelligent guidance and positioning, and shape defects) as a solution. EMVP series vision systems rely on their advanced vision capabilities and their superior durability to help manufacturers worldwide increase productivity, ensure product quality and reduce production costs. This system is one of the few vision systems on the market that can provide industry-level functional standards.
