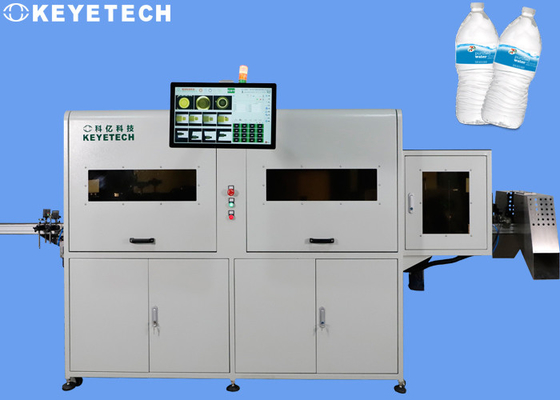

500ml Empty Bottle Inspection System With High Precision Sample Image Showing

500ml Empty Bottle Inspection System With High Precision Sample Image Showing

500ml Empty Bottle Inspection System With High Precision Sample Image Showing
500ml Empty Bottle Inspection System With High Precision Sample Image Showing
500ml Empty Bottle Inspection System With High Precision Sample Image Showing
Product Details:
Place of Origin: CN
Brand Name: KEYE
Certification: No
Model Number: KVIS-T-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Warranty: 1 Year Weight: 400 Kg
Color: Grey Material: SS 304
Pixel: 5 Million Key Technology: AI Inspection
Applicable: Empty Bottle Inspection System OEM: Yes
Loading Port: Shanghai Packing: Wood Package
High Light:

500ml Empty Bottle Inspection System

,

Sample Image Showing Bottle Inspection System

,

5 Million Pixel Bottle Inspection System

500ml Empty Bottle Inspection System With High Precision Sample Image Showing



Product background

In life, people's demand for beverages is essential. Therefore, the appearance of beverage bottles also affects the concerns of every consumer. In order to reduce the number of unqualified beverage bottles, enterprises and manufacturers need to pay attention to the inspection process, and use the appearance defect visual inspection system to detect appearance defects in beverage bottles. Detection can solve this problem very well.

500ml Empty Bottle Inspection System With High Precision Sample Image Showing 0
Common beverage bottle defects can affect the quality of beverage bottles, such as: high cap, crooked cap, cracked cap, no coverage, light quantity, standard error, no coding and other defects, so we need to prioritize these appearances when testing These common defects can be effectively detected through the visual inspection system for appearance defects, and the aesthetics can be adjusted at the same time. Our system can not only reduce labor costs for enterprises, but also effectively improve detection efficiency and accuracy, and provide enterprises with better online product testing services.



Inspection principle

The market demand for mineral water continues to increase, and customers have higher and higher requirements for product quality. Enterprises also pay more attention to brand building. More and more mineral water manufacturers have begun to use bottle cap liquid level coding detection systems.

500ml Empty Bottle Inspection System With High Precision Sample Image Showing 1

OCR visual inspection of the bottle cap position, liquid level and coding of mineral water bottles replaces the traditional manual inspection, thereby rapidly improving production efficiency and product quality, and solving the low efficiency, slow speed, and missed inspection errors of human inspection. The disadvantages of high detection rate, as well as false detections and missed detections caused by uncertain factors such as the subjectivity of the testing personnel, can achieve better online product testing.



Detection process&system details

1. Install a customized visual inspection system on the mineral water production line;

2. When the mineral water bottle flows into the visual inspection station, the product picture taken by the machine vision sensor is triggered and sent to the system. The system extracts and analyzes the taken picture and compares it with the setting to know whether the bottle cap of the mineral water bottle has a high cap or a low cap. Whether the cover, high and low liquid level, and coding are bad;

3. When it is detected that the mineral water bottle cap has a high cap or a low cap, the coding is defective or the liquid level is high or low, the system sends a signal to the rejection device to give rejection processing and alarm prompts.

Model.No Camera Detection range Test content Error Accuracy Speed Remark
KVIS-T-C-C06 1set bottle shoulder

black spot,

impurity

>=0.5mm 99.5% 100-120/min All other foreign bodies are treated as black spots
1set bottle lip flash

black spot,

impurity

deformation
4set

side printing

surface

missing print the font to disappear 100%
blur >=0.5mm 99%

black spot,

impurity

99.5%



Our advantages

  1. AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training.
  2. Dataization: Independent database, save multiple samples, analyze non-good products, and retain history.
  3. Multi-orientation: 360 degree comprehensive inside and outside the bottle without dead corners for medical packaging bottle caps, bottle mouths, bottle bottoms.
  4. High precision: detection accuracy can reach 99.5%.
  5. Modularization, can flexibly increase or decrease the detection function according to customer actual needs.
  6. Easy to operate: It is easy to operate and easy to maintain.
  7. Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment.

500ml Empty Bottle Inspection System With High Precision Sample Image Showing 2

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------------------------------------------------------
