Applications: | FMCG Products Packaging Inspection Machine | Selling Points: | High-tech |
---|---|---|---|
Number Of Cameras: | 8 Set | After Sale Service: | On-line Service |
Feature: | Free Of Labor | Working Humidity: | Below 50% Relative Humidity |
Total Power: | 4.0~5.0 Kw | Dimensions: | See The Design Drawings For Details |
High Light: | Packaging Inspection Equipment ODM,Anti Counterfeiting Packaging Inspection Equipment,ODM inspection machine in pharmaceutical industry |
System operating parameters | |||
Dimensions |
See the design drawings for details |
Power and frequency | 220V 20A 50HZ |
Total power | 5.0~6.0 kw | Air pressure | 0.5~0.8MPa Purify and oil-free |
Working temperature | -20℃ ~ 60℃ | Working humidity | Below 50% relative humidity |
The detecting standards are as follows:
Detection content and accuracy | Detection precision | Speed |
Black spots, stains (different colors)≥0.2mm | 99% | 120pcs/min |
Notches, overlap≥0.5mm | 99% | |
Black spots, stains (different colors)≥0.3mm | 99% | |
Black spots, stains (different colors)≥0.2mm | 99% | |
No printed content area | ||
Label misalignment, labeling, damage≥0.5mm | 99% | |
Black spots, stains (different colors)≥0.2mm | 99% |
Inspection principle
With the vigorous development of the pharmaceutical industry, many pharmaceutical manufacturers have begun to pay more and more attention to their brand reputation and influence. However, there are still many illegal manufacturers in the market that disrupt the market and make huge profits through counterfeiting and labeling, which greatly affects the brand image. For this reason, the medical and health care industry has begun to use in-mold labeling bottles, which has effectively promoted brand promotion, product anti-counterfeiting and drug safety. Due to the high production cost of in-mold labeling itself, and the use of robot systems to complete the label delivery work Therefore, there are certain thresholds in terms of capital and technology.
In the production process, the in-film sticker is an important part of the outer packaging of the product. The quality detection of the finished product in the film is an important part of the production of product packaging. However, after the in-film sticker is blow-molded, it cannot be detected separately. Therefore, in the production process, according to the detection requirements of external packaging, Keye Tech will design a set of overall packaging detection schemes to break through the inefficiency of traditional inspections and use AI visual inspection technology to improve production efficiency.
Detecting products

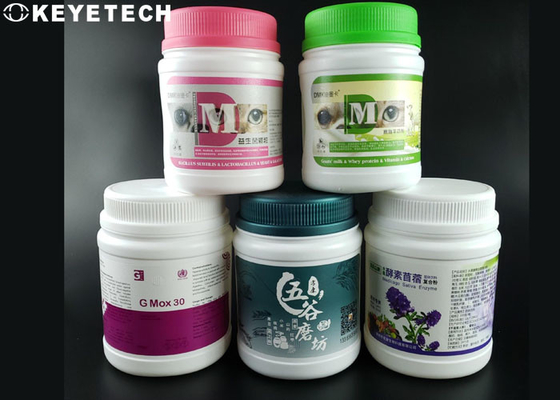

PP in-mold cup products, used for medical packaging, see actual samples for details.
Detection principle
Through the docking conveying device (the product needs to be output in a straight line with the mouth facing upwards, and the product spacing must be kept above the radius of the cup mouth), the products are transferred to a specific station in a stable and orderly manner,and then the high-pixel sample image taken by the industrial camera is transferred to the image processing software, and the standard sample is compared and analyzed to determine the good product and the defective product, and control the corresponding pneumatic to remove the defective products and finally collect the qualified products.
The software will open the sample comparison standard, and the production personnel on the customer site can control the comparison accuracy and choose the accuracy standard most suitable for their own production conditions, thereby controlling the product defect rate.
Detecting details
Our design plan adopts 14 sets of high-pixel industrial cameras and high-performance stroboscopic light sources to carry out a full range of visual detection for the appearance defects of the bottle body. The detection speed is 120 pieces per minute. The equipment can realize 7*24 hours of operation, and the unqualified products can be automatically rejected online.
The whole set of detecting equipment includes mechanical parts, visual electronic hardware and detecting system software. The entrance and exit of the detecting machine can be integrated with the on-site conveyor line (see the design drawings for details), and can be connected to the upstream and downstream production equipment according to the specific production needs of the customer.

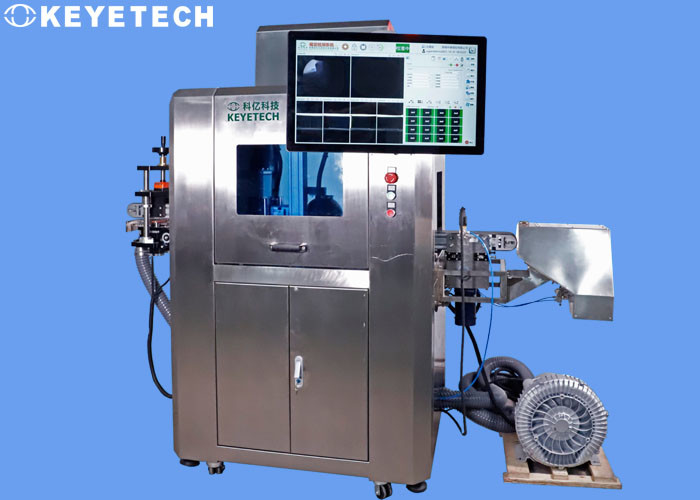

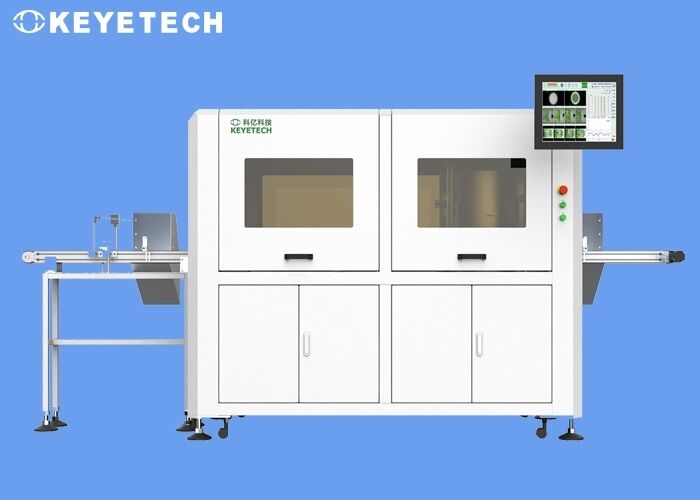

The detecting equipment is shown in the figure below (reference):
Light source, industrial computer, touch screen, electrical box, etc.).
System composition
(1) Mechanical part:
The mechanical part is the core component of the system, which carries all the transmission devices and electronic hardware (industrial cameras,
The conveyor belt adopts a vacuum adsorption belt to adsorb and fix the sample on the surface of the belt without sliding, so that the picture can be accurately taken.
(2) Hardware part:
The hardware part includes camera, lens, light source, high-speed air valve, computer, touch screen and other electrical equipment, the overall logic control of the system is realized by the high-speed FPGA chip.
