Visual Inspection System for Alaska Cap with Machine Vision Technology

Visual Inspection System for Alaska Cap with Machine Vision Technology

  • Visual Inspection System for Alaska Cap with Machine Vision Technology
  • Visual Inspection System for Alaska Cap with Machine Vision Technology
Visual Inspection System for Alaska Cap with Machine Vision Technology
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Weight: 500kg Colour: According To Customer's Need
Inspection Standard: Alaska Cap/Bottles/Preform Key Technology: AI Inspection
Information Storage: Available Product Type: Bulk Material
False Rate: 0.5% After Sale: Remote Service
MOQ: 1 Set Packing: Wood Carton Package
High Light:

plastic Waste Sorting Machine

,

cardboard Waste Sorting Machine

,

automatic recycling sorter

Equipment overviews

Item

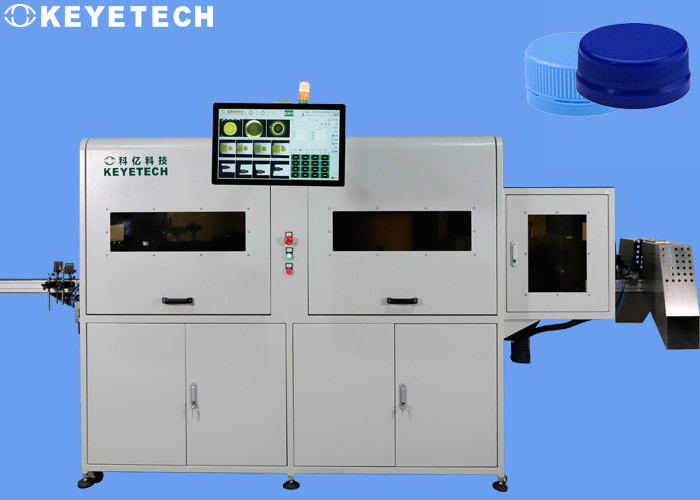

Alaska cap inspection machine Main Material Stainless steel
Software Algorithm Deep Learning Voltage Ac220/50Hz
Voltage 4kw Air Pressure 0.5-0.8Mpa
Transfer Method Lossless Delivery Detection Status Online Real-Time Detection
Detection Method High-Speed Industrial Camera Number Of Camera Depending on the specific situation



Inspection principle



The bottle cap inspection machine adopts machine vision technology to measure, judge and analyze the detected object with the machine instead of the human eye. To a dedicated image processing system, according to pixel distribution, brightness, color and other information, converted into digital signals.

Visual Inspection System for Alaska Cap with Machine Vision Technology 0

The image system performs various operations on these signals, extracts the characteristics of the target, and then controls the action of the equipment on the spot according to the judgment result of the set standard, and the unqualified products are automatically rejected. In this way, the detection process can realize automatic feeding, automatic detection, automatic sorting, unloading, packing, packing and other system operations, and the detection work is more efficient and fast.



Features of system

The AI inspection system integrates lid feeding and handing equipment, conveying mechanism, visual system hardware and inspection software, and defective product rejection device. The maximum inspection speed is about 30,000 pieces/hour, and the equipment can achieve 7*24 It runs 24 hours a day, which greatly improves production efficiency.

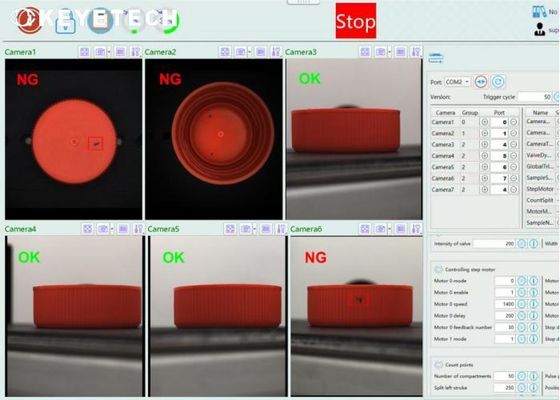

The inspection equipment is equipped with a total of 6 sets of high-pixel industrial cameras to comprehensively detect the appearance of defects of the product. After the system collects sample images, the image processing software is compared with standardized samples to determine good and defective products, and the defective products are automatically eliminated online.



Inspection standards

Model Number of camera Inspection scope Inspection content Detection precision Accuracy Capacity

KVIS

-SC06

1 set Concave surface Black spot (color different) ≥0.2mm 99%

9000-

10000

Per/ hour

Transformation ≥1.0mm 99%
Flash ≥0.5mm 99%
4 set Outside surface Black spot (color different) ≥0.2mm 99%
Injection incomplete ≥0.5mm 99%
Flash ≥0.5mm 99%
1 set Top area Black spot (color different) ≥0.2mm 99%




Advantage of system

  • AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
  • Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
  • Multi-orientation: 360 ° comprehensive inside and outside the samples
  • High precision: detection accuracy can be high
  • Modularization, can flexibly increase or decrease the detection function according to customer actual needs
  • Easy to operate: It is easy to operate and easy to maintain
  • Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment
