OEM/ODM Bottle & Cap Closures Visual Inspection System for Production Line

Inspection standards

Machine vision inspection product types are the mainstream intelligent products in industrial production. The product category recognition system is based on computer vision and pattern recognition theory. By acquiring product images, processing and analyzing the images, extracting characteristic parameters reflecting the morphological structure of product varieties, and then using the characteristic parameters to perform feature matching on corresponding products, so as to achieve Product category visual identity.

Product background

Due to the enourmous speed of a closure production line and high quality requirements, closure inspection can be a challenging task. During production, common defects like contamination, flash, short shots and defects at the tamper evident band might occur. Our closure vision systems detect these defects effortlessly. In addition, the quality inspection of our systems include many other common and customized inspection criteria like color, cavity number reading, print control, laser engravings, high voltage micro-hole tests, diameter and height inspection.

No matter whether you produce standard closures or specialty caps like sports caps or push-pull caps, we offer different solutions for any kind of product. Even tethered caps do not present a problem since our inspection system is already prepared for the new EU regulation by means of special tethered cap inspection features.

Inspection principle

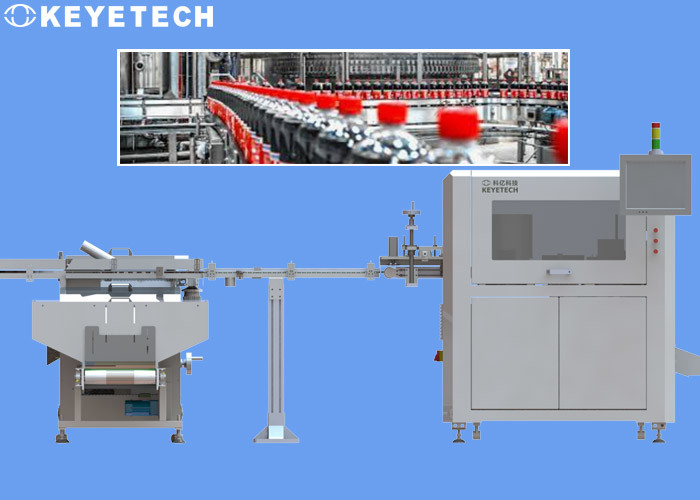

The AI inspection system integrates lid feeding and handing equipment, conveying mechanism, visual system hardware and inspection software, and defective product rejection device. The maximum inspection speed is about 30,000 pieces/hour, and the equipment can achieve 7*24 It runs 24 hours a day, which greatly improves production efficiency.

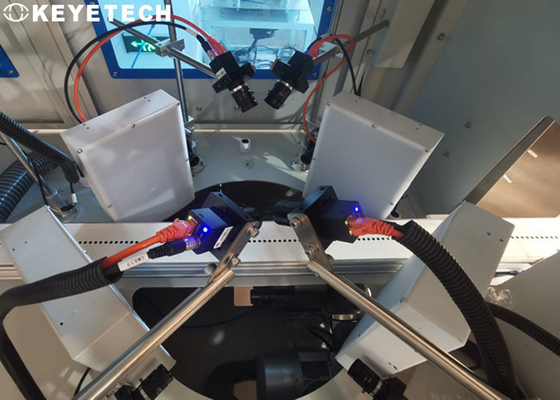

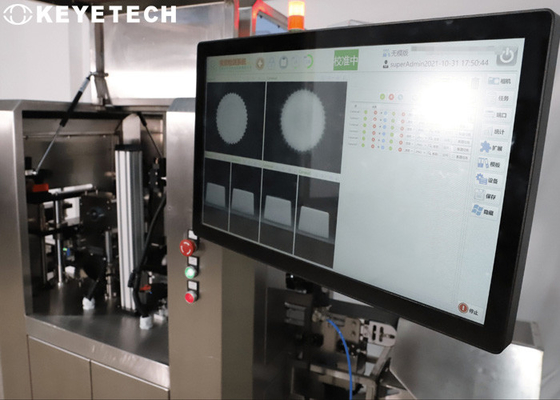

The inspection equipment is equipped with a total of 6 sets of high-pixel industrial cameras to comprehensively detect the appearance of defects of the product. After the system collects sample images, the image processing software is compared with standardized samples to determine good and defective products, and the defective products are automatically eliminated online. , The software will open the sample comparison standard, and the production personnel on the customer site can control the comparison accuracy and choose the accuracy standard most suitable for their own production conditions, thereby controlling the defect rate.

Our advantages

• 1. AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training
• Dataization: Independent database, save multiple samples, analyze non-good products, and retain history
• Multi-orientation: 360 ° comprehensive inside and outside the samples
• High precision: detection accuracy can be high
• Modularization, can flexibly increase or decrease the detection function according to customer actual needs
• Easy to operate: It is easy to operate and easy to maintain
• Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment
