AOI Capacitor Automated Optical Inspection Systems for 3C Assembly line

AOI Capacitor Automated Optical Inspection Systems for 3C Assembly line

  • AOI Capacitor Automated Optical Inspection Systems for 3C Assembly line
  • AOI Capacitor Automated Optical Inspection Systems for 3C Assembly line
  • AOI Capacitor Automated Optical Inspection Systems for 3C Assembly line
  • AOI Capacitor Automated Optical Inspection Systems for 3C Assembly line
AOI Capacitor Automated Optical Inspection Systems for 3C Assembly line
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS-DR
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 4 weeks
Contact Now
Detailed Product Description
Condition: New Accuracy: 99.8%
Touch Screen: Humanized HMI Application: 3C Assembly Line
Air Pressure: 0.2Mpa-0.5Mpa Conveying Method: Vibrating Plate Feeding, Non-destructive Conveying
Camera Type: High-speed Industrial Camera Algorithm: Deep Learning
High Light:

Capacitor Automated Optical Inspection Systems

,

AOI Automated Optical Inspection Systems

,

AOI automatic optical inspection system

Product background

Machine learning refers to the use of algorithms to enable computers to dig out information from data like humans. Deep learning, as a subset of machine learning, uses more parameters and more complex models than other learning methods. Makes the model's understanding of the data deeper and smarter. In computer vision, a pre-trained image classification network is usually used as the feature extraction front end of an object detection and segmentation network. Using these pre-trained networks as front-ends can ease the training of the entire model and often helps achieve higher performance in a shorter time. KEYE TECH integrates the application experience of the outer packaging inspection industry into the capacitor appearance inspection industry. And for the first time to introduce deep learning algorithms in the capacitor appearance inspection industry. The algorithm uses human mathematics knowledge and computer algorithms to build an overall structure, uses a high-performance computer for a large number of simulation training, and then combines a large amount of training data to adjust the parameters, and finally realizes the recognition of the appearance of the capacitor.

AOI Capacitor Automated Optical Inspection Systems for 3C Assembly line 0



Inspection principle:

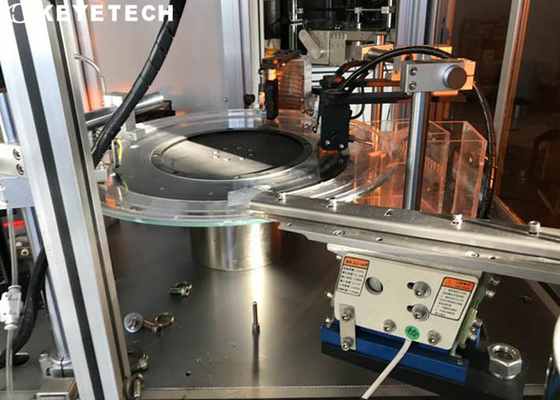

The materials are arranged by vibrating plate, Linear vibration and non-destructive conveying, and the capacitance is stably and orderly transferred to the specific inspection station, and then the high-pixel sample image captured by the industrial camera is transferred to the image processing software. After the system analyzes and processes, it judges good and defective products, and controls the corresponding pneumatic components to eliminate the defective products, and finally collects qualified products.

AOI Capacitor Automated Optical Inspection Systems for 3C Assembly line 1



Inspection details:

The inspection machine adopts 14 sets of high-pixel industrial cameras and high-performance stroboscopic light sources to carry out omni-directional visual inspections for product appearance defects. The inspection speed is 400-600 pieces/min. The equipment can realize 7*24 hours of all-weather operation, and it can be online automatically. Eliminate substandard products.

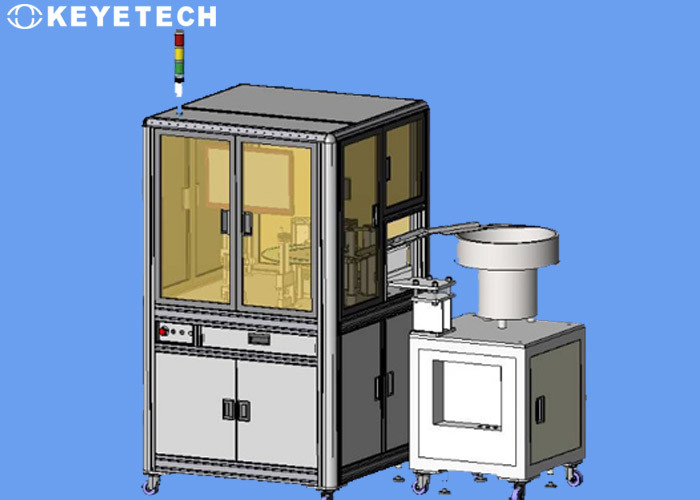

The whole set of inspection equipment includes mechanical, visual electronic hardware and inspection system software. The entrance and exit of the equipment are reserved for docking positions to facilitate on-site operations.

 Equipment parameters

Name Electrolytic capacitor appearance inspection machine Model KVIS-DR

Dimension(mm)

L*W*H

2590* 800*1850(Length does not include vibration plate system) Voltage AC220/50HZ
Power 3KW Pressure 0.4-0.7Mpa

Conveying method

Vibrating plate feeding, non-destructive conveying Inspection method Online real-time inspetection
Camera type

High-speed industrial camera

Number of cameras

14 sets of camera

Algorithm

Deep learning

Compatible product size

Φ8-10,12,13

Speed

400~600/min

Inspection scope

Poor appearance, poor size, mixed specifications, etc.

Rejection method

High-speed automatic rejection





Our Advantages

AOI Capacitor Automated Optical Inspection Systems for 3C Assembly line 2
