Packaging Inspection Equipment For PP Plastic Disposable Food Containers

Packaging Inspection Equipment For PP Plastic Disposable Food Containers

Packaging Inspection Equipment For PP Plastic Disposable Food Containers
Packaging Inspection Equipment For PP Plastic Disposable Food Containers
Packaging Inspection Equipment For PP Plastic Disposable Food Containers
Product Details:
Place of Origin: China
Brand Name: KEYE
Certification: NO
Model Number: KVIS-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wood
Delivery Time: 4 to 6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1 set per 6 weeks
Contact Now
Detailed Product Description
Name: Packaging Inspection Equipment For PP Plastic Disposable Food Containers Detection Speed: 300pcs/min
Brand: KEYE Camera Number: 8 Set
Colour: According To Customer's Need After-sales Service: Video Technical Support
Touch Screen: 21 Inches Product Type: Bulk Material
Syste Size: System Operating Loading Port: Shanghai
High Light:

PP Containers Packaging Inspection Equipment

,

Plastic Containers Packaging Inspection Equipment

,

Packaging Inspection Equipment 300pcs/min

Packaging Inspection Equipment for PP Plastic Disposable Food Containers



System Operating Parameters

Syste Size

System Operating Parameters

Voltage And Current

220V 20A 50Hz

Power

5.0-6.0kw

Compressed Air

Clean And Oil-Free

Ambient Temperature

-20℃ ~ 60℃

Environment Humidity

Below 50% Relative Humidity



The Testing Standards Are As Follows:

Model

Camera

Detecton Range

Detection Content And Accuracy

Accuracy

Speed

Kvis

1 Set

Mouth Plane,  Inner Wall Area

Black Spots, Stains

99%

150-300pcs/min

Black Spots, Stains

99%

Gap, Flash

99%

8 Sets

The Outer Side

Black Spot Stains

99%

Label Misplacement, Stamping, Damage

99%

1 Set

Outer Bottom

Black Spots, Stains

99%



Inspection details

  • Our company uses five sets of industrial cameras to test the product according to the needs of product characteristics and testing content; each camera corresponds to an inner side of the product;
  • Because of the detection of holes in this inspection project, our company chooses the backlight light source for the optical system.
  • Compatible with products of different specifications according to the actual situation on site
  • Pneumatic rejection of unqualified products, and the count of defective products can be realized;
  • All conveying parts of our products will use vacuum negative pressure belts to ensure that the products running at high speed will not deviate and fall.

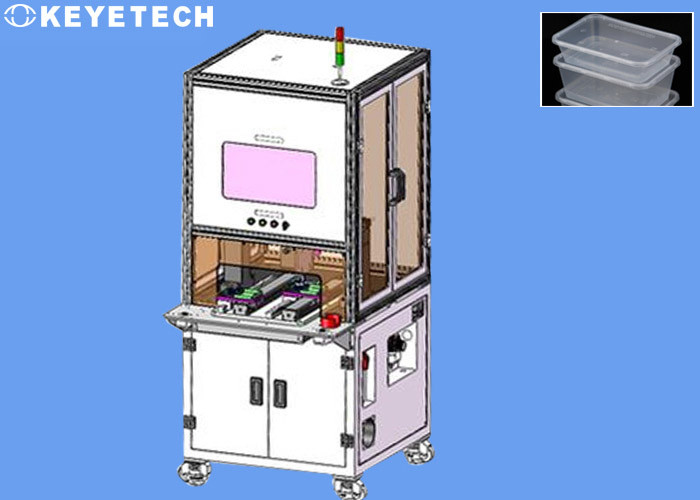

Packaging Inspection Equipment For PP Plastic Disposable Food Containers 0



Conveyor design

According to the situation of the on-site equipment and the consideration of the on-site space, our company will replace the belt conveyor in the host with our belt equipment (the conveyor mechanism composed of three flexible chain plates with the same width as the on-site belt), on the equipment Our company will combine the original 3*3 or 3*4 form of incoming materials into 1*1 incoming materials by means of blocking and speed difference, and enter the testing equipment, so that our testing equipment can conduct testing, the middle belt first, both sides The way the belts converge towards the middle. As shown in the figure below:

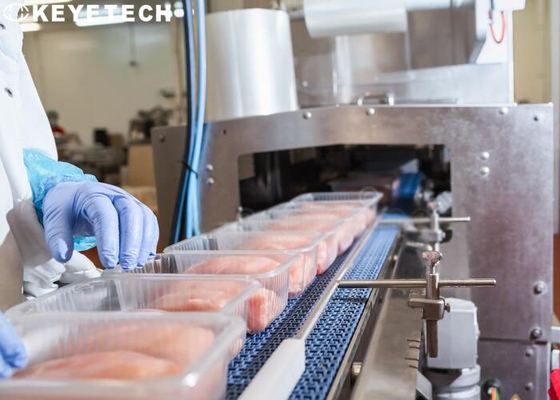

Packaging Inspection Equipment For PP Plastic Disposable Food Containers 1



After-sale service

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.



After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.
